- Adjustable Power Range: 30W to 100W for customized vaporization.
- Adjustable Timer: 10-60 Seconds
- Dual 21700 Battery Compatibility (Batteries Optionally Included): Extended usage and convenience.
- Adjustable Chamber Height (remove battery cover and push up ceramic insert from underneath)
- Replaceable Glass Tube Chamber: Easy maintenance and enhanced purity.
- Larger Coil to fit with more products
- Integral Cooling Magnet
- Approx. Dimensions 135mm long x 69mm wide x 41mm tall
- Approx. Weight 306g (without batteries)
- Requires 5v 2amp charger, may not work with high power PD chargers or similar
- CE and ROHS Certified
- 1 Year Manufacturer warranty against defects
Silicone Adapters for use with DynaVaps can be found here.
Decappers can be found here.
Charging explained
The YLL-IH 3.0 does not have pass through charging. It can however be used while plugged in. So the way it works is the unit is plugged in and charging. You turn the unit on and start heating the device, charging pauses. If it's left plugged in after a couple of minutes of not being used it will resume charging.
Included

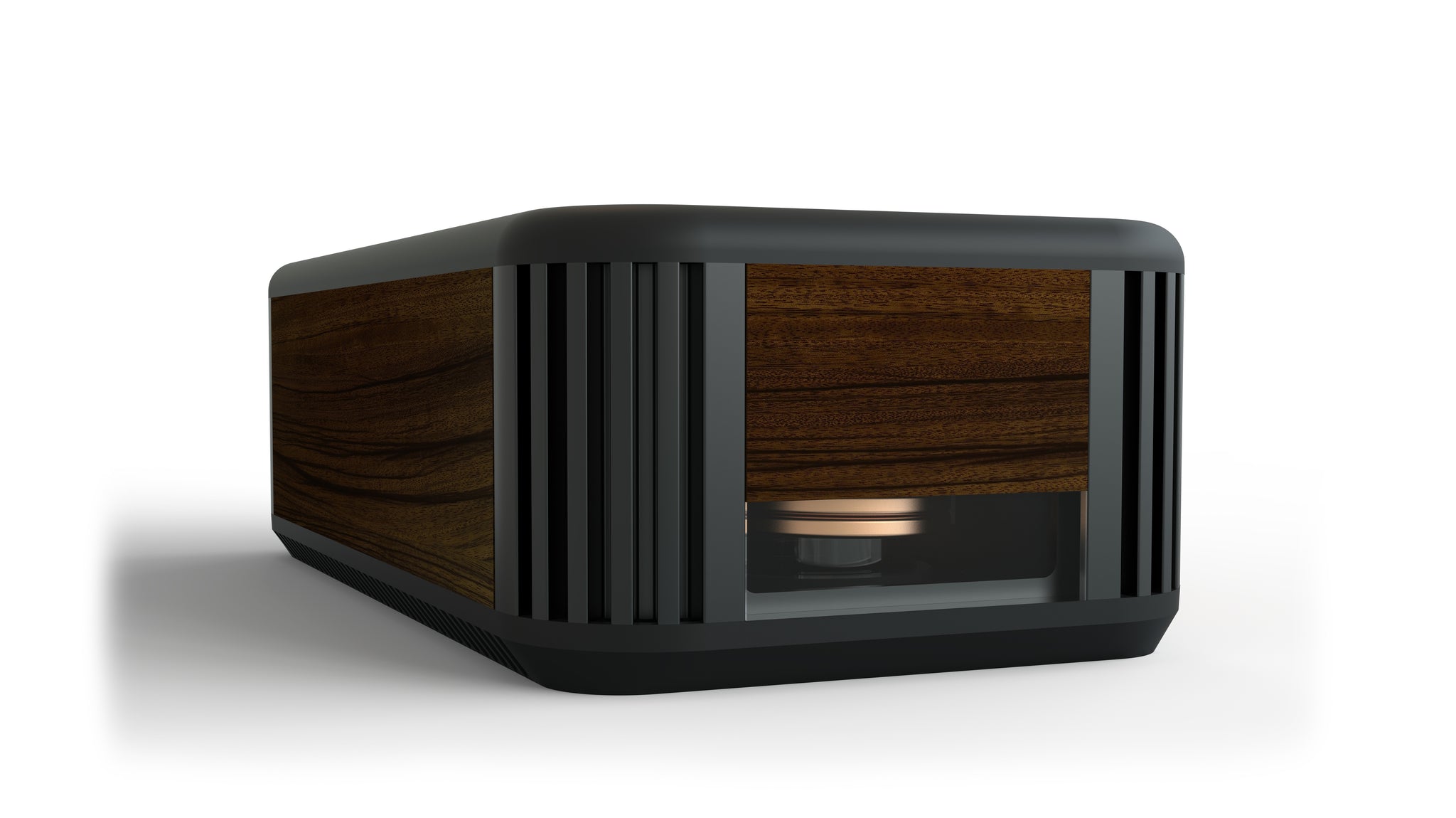

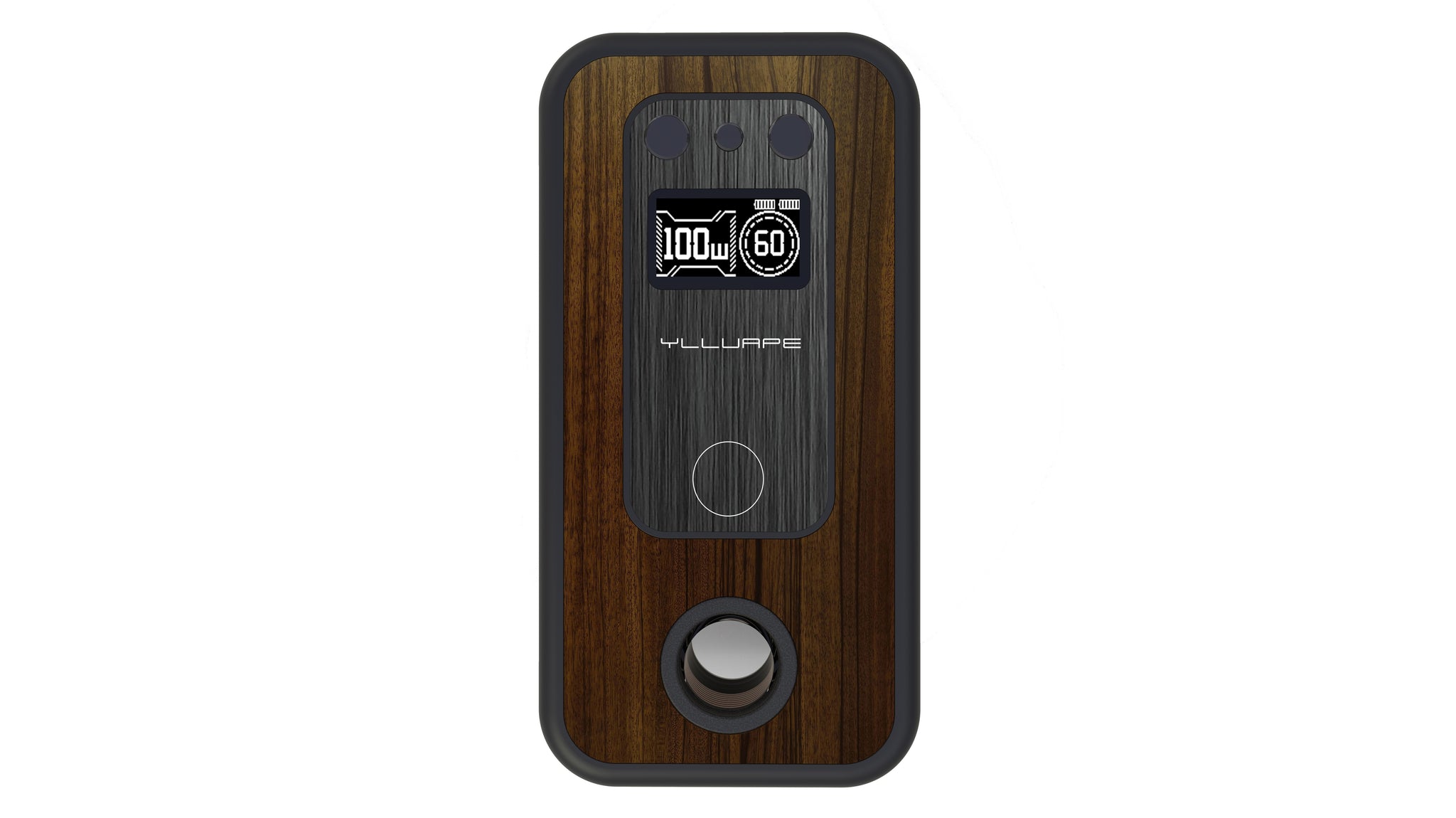

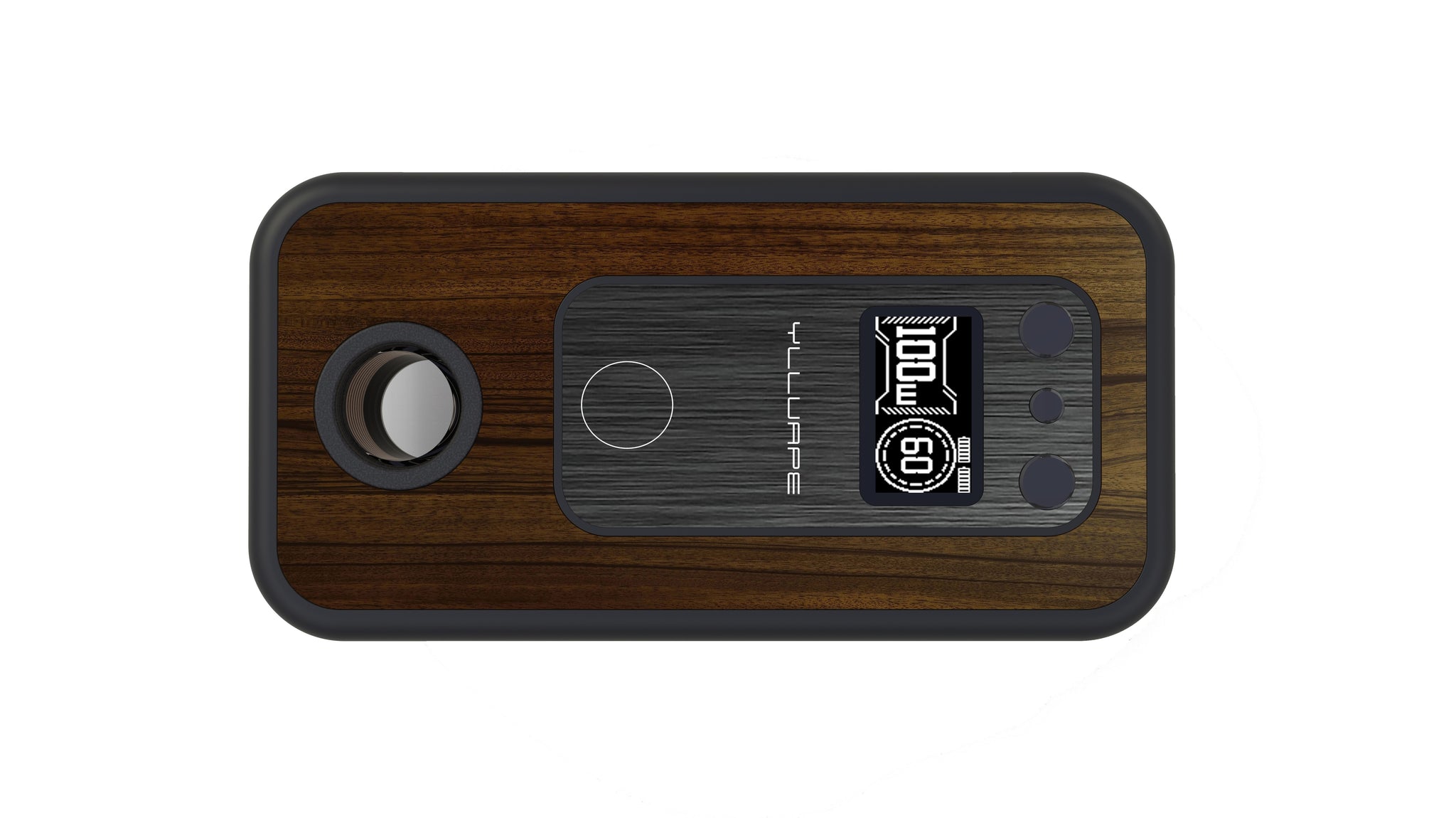

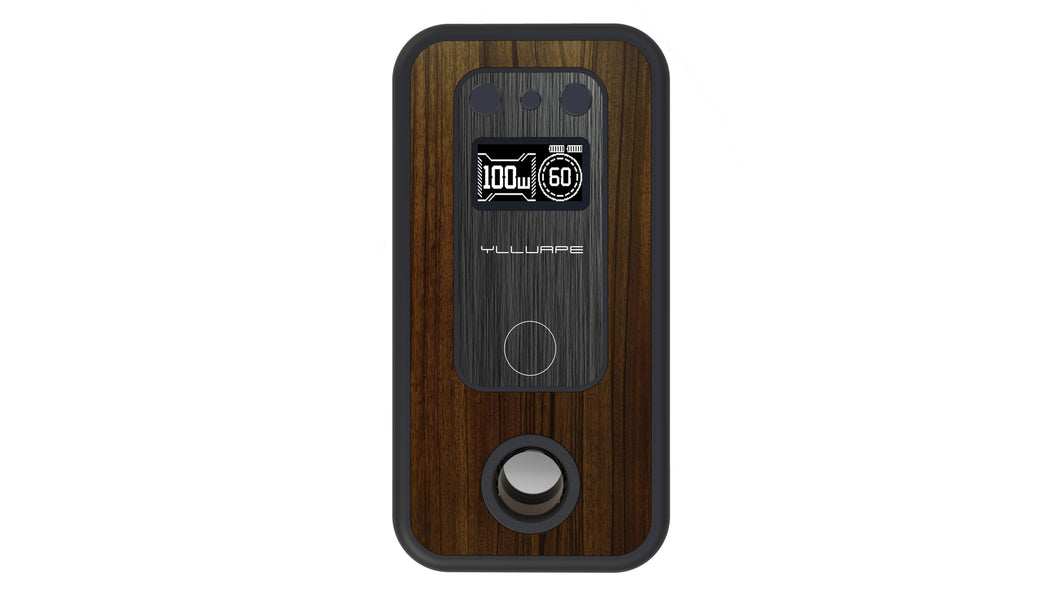

- YLL Induction Heater 3.0

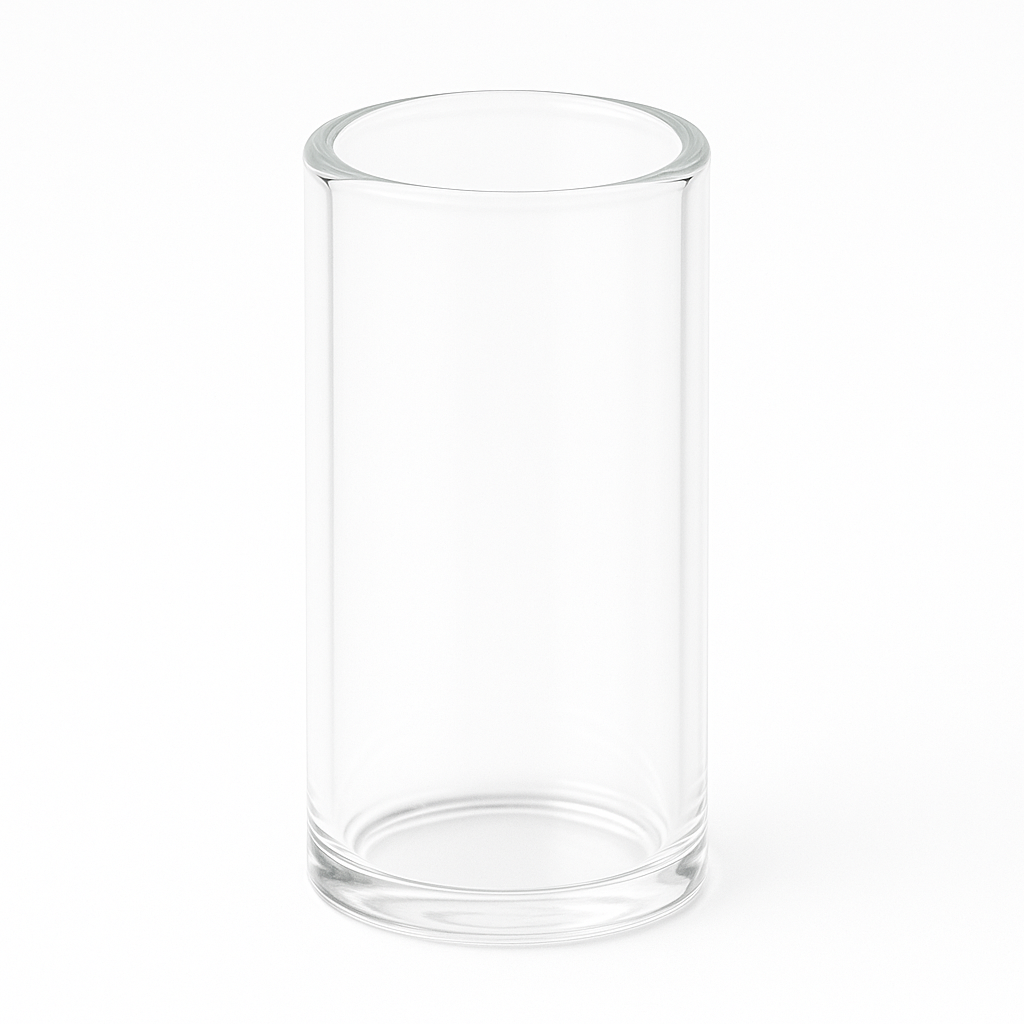

- 2 x Glass Tube (one installed)

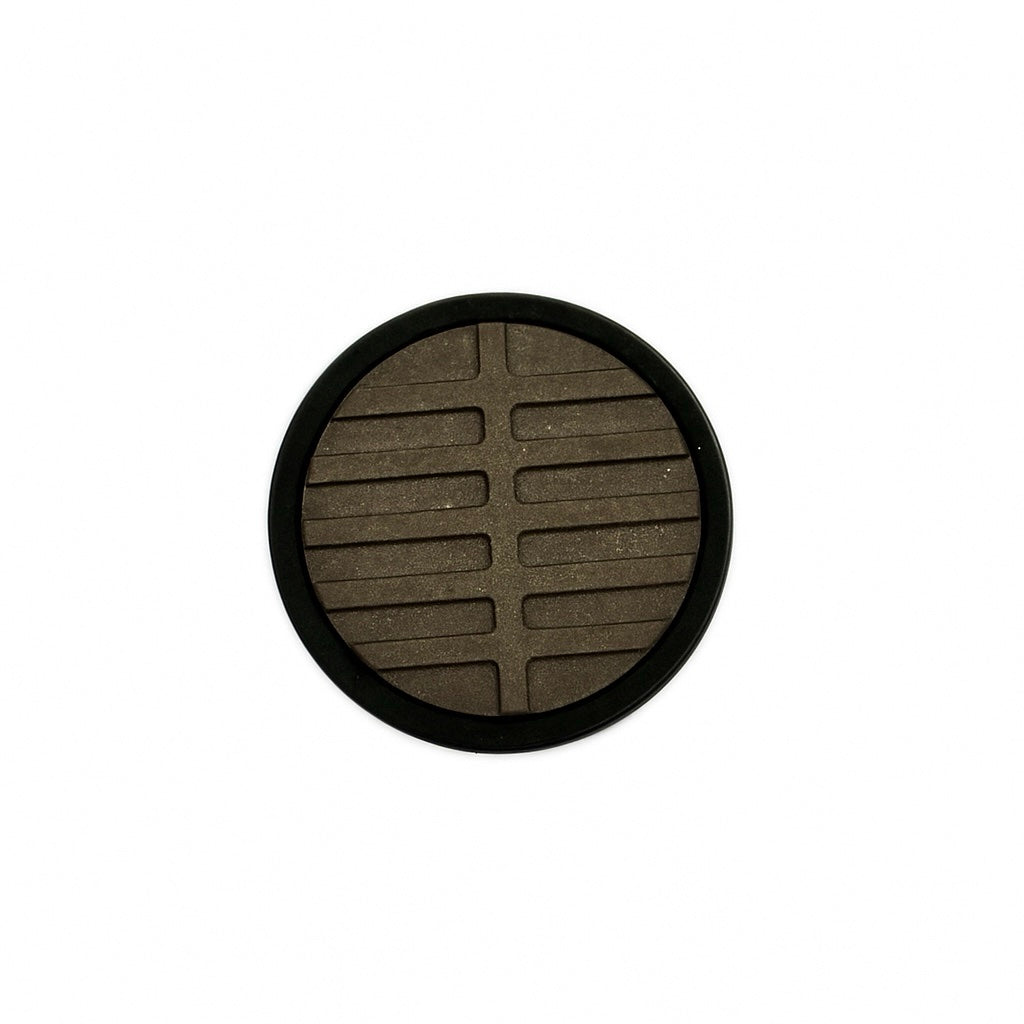

- 2 x Ceramic Inserts (one installed) - 18mm Internal Diameter
- 1 x USB-C Cable
- Optional Batteries, select if required - We will be supplying this device with the Reliance RS50 5000MaH 70 Amp constant discharge batteries. These have a much higher specification than required but have more capacity than most others which will give you quite a few more heating sessions. They also have a much higher Amp rating which should allow you to run higher wattages on the induction heater even as the batteries are running low, instead of seeing the wattage drop as much as the batteries drain! If these batteries are unavailable (happens occasionally due to international supply chains) we will supply other batteries capable of at least 35 Amp constant discharge and 4000mAh so they are at least of the original specification provided by YllVape.
- If you have 21700 batteries please ensure they're capable of at least 35 Amp constant discharge, lower Amp batteries will cause the device to under-perform
Device Compatibility and Setting Suggestions
- DynaVap Woodwynd or DynaVaps with standard caps - 70W max
- DynaVap Armored Cap - 80W Max
- UniDyn - 70W Max
- HyperDyn - 100W Max
- Pipex - 80W Max
- Convector - 80W Max
- Convector XL - 100W Max
- Convector V2 - 100W Max
- Vapos - 75W Max
- Fusion 2.0 - 65-70W Max
- Dani Punch V1 - 65-70W Max
- Dani Punch V2 - 100W Max
- Tempest - 100W Max
- Tempest 2 - 100W Max
- Anvil CopperCore - 80W Max (we are told the Flare 2.0 is a more suitable IH for the Anvil Setups as they can run at higher wattage however we're still awaiting feedback from a tester to confirm this)
- Anvil Coppercore with Silver Collar - 100W Max
- Tornado - 100W Max
- Simrell Max - 100W Max
Please note these suggestions for heating profiles are just suggestions! Since the devices will heat differently depending on the height of the ceramic insert inside there will be a little tweaking for each person. If you find your herb combusts using one of the above suggestions, reduce the time or wattage. I would always say err on the side of caution, you can always heat it a bit more if needed, but once it's combusted you have a cleaning job to do, so work up to hotter temps instead of down from them!
If the cap material is thinner or not particularly inductive (not great for induction heaters) like the DynaVap or HyperDyn the IH will automatically limit the wattage to the maximum it can provide to it which is why suggested wattage settings are lower for these.
As batteries drain they cannot provide the same amount of power, so if you're using higher wattage settings please keep more charge in the batteries. If they're low on power the Flare will automatically reduce the maximum wattage when you put a device in it to avoid over-stressing the batteries and damaging them.
Always used batteries of the same type with the same charge level, ideally of the same age, it is always best to use batteries in sets to ensure they charge and discharge at the same rate since older and more used batteries will hold less charge than new ones.

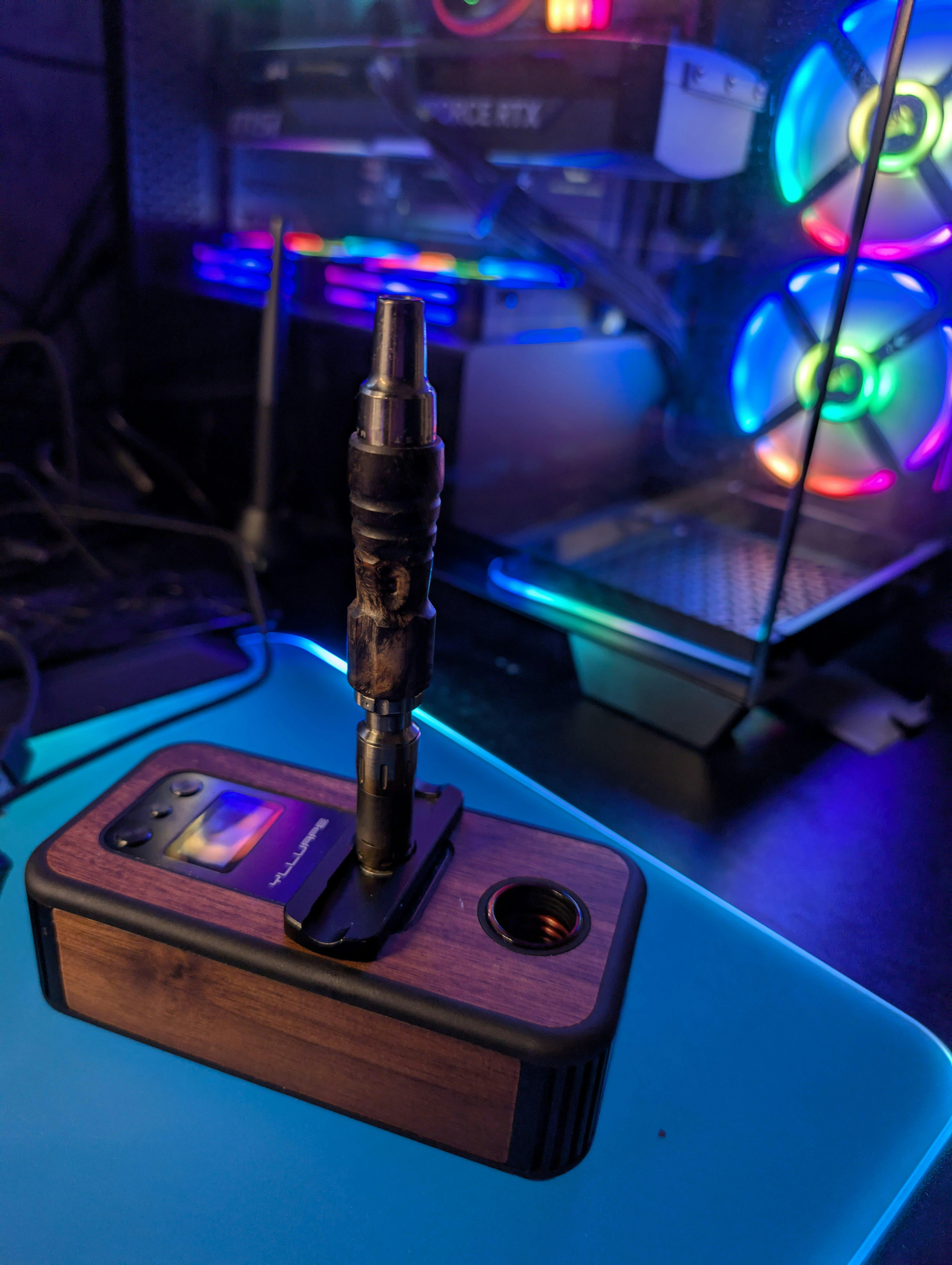

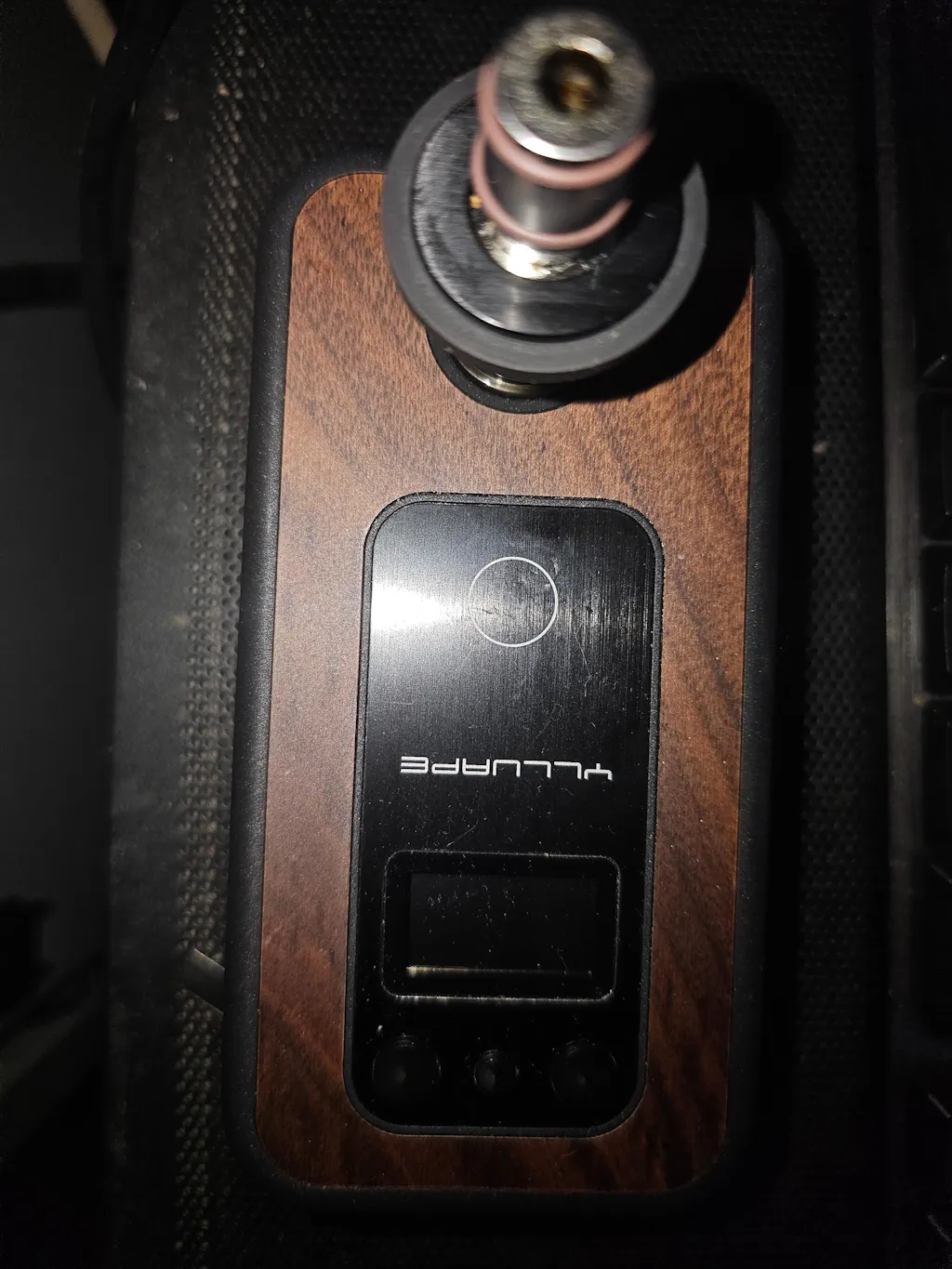

Got it to pair with the Dani Punch V2.0 .With a little tinkering , It preforms well with consistently repeatably hits
Much better than I expected
As someone that has built portable induction heaters this a great compact device but I would not recommend you use this with a Dani Punch V2 as it will end up looking like it's 2 years old in only a days use. Also the Dani Punch V2 requires less coils of the coil and further up from the base, so it isn't heating at the tip of the cap (not a problem with a DynaVap as it pulls air through the grooves behind the cap and over the top, whereas the DP V2 only pulls air from the air holes at the bottom of the cap)
Thanks for the review, happy to hear you're (mostly) getting on with the IH. If you'd like to heat the tip of the punch more, you can adjust the height of the ceramic piece inside the glass tube of the IH. Just remove the battery cover and push the ceramic piece up from underneath so it sits a little higher in the glass tube. Both the DynaVap and Punch use pretty much the same airflow path for the tip, with the DV the air comes from the bottom of the cap, around the outside of the tip inside the cap, then is pulled through the herb from the top and down through the stem. The Punch airflow path is very similar, it's drawn in from underneath the tip through the holes, then again it travels up around the tip inside the cap and over the top, into the herb and down the stem. There's a photo on the punch page (4th photo) which shows the airflow path which might make it clearer but that's pretty much the same, just with more airflow and adjustable airflow. The internals of the stems are quite different otherwise but that top part is very similar. Hope this helps!

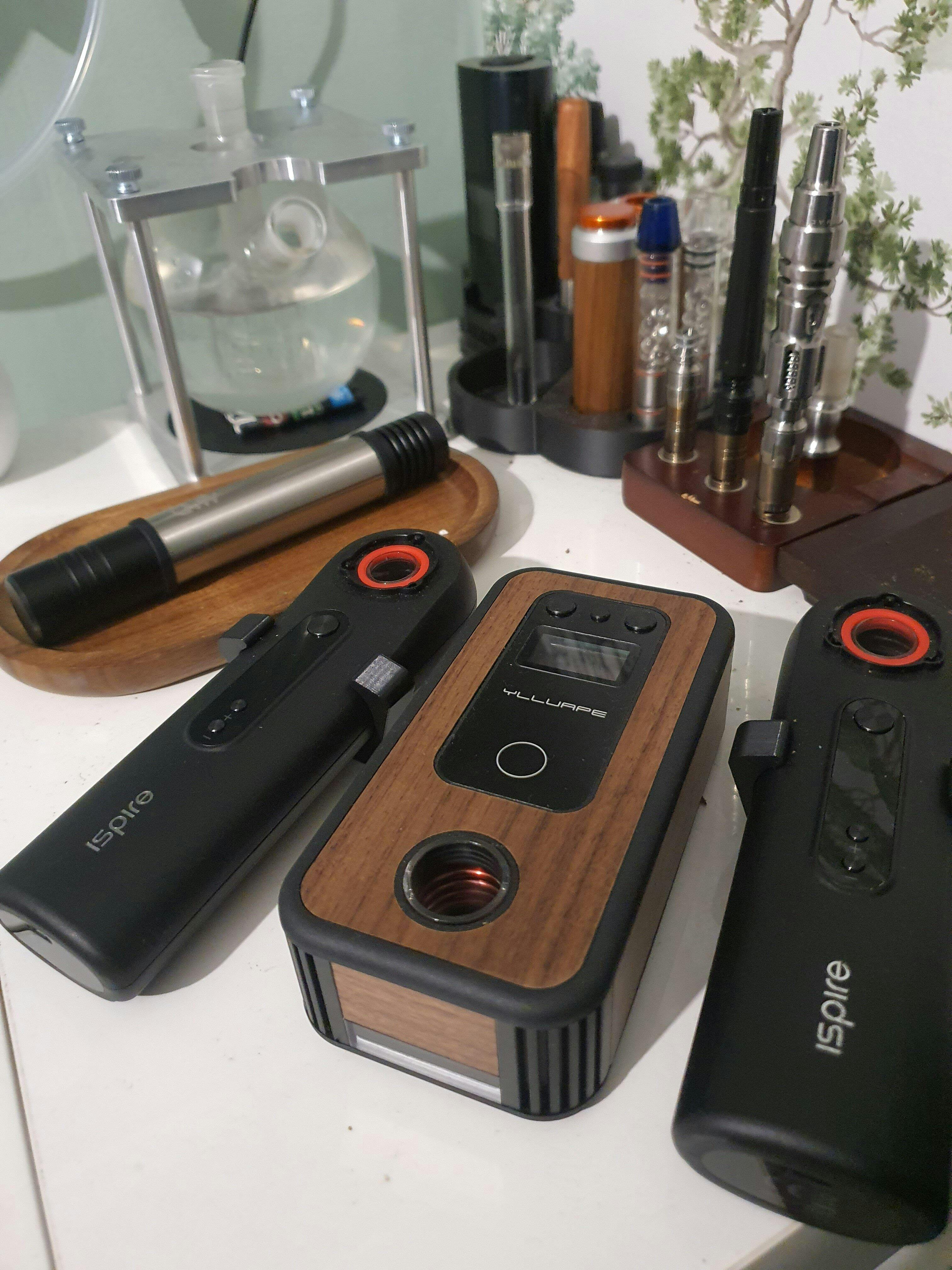

I bought this for out and about, to use with either a JCVap or Dani Punch V2, it’s a brilliant heater and very easy to use, consistent results would highly recommend the heater also RVS outstanding service again
Works with my Dyna's and the crown cap like a champ. Quality and value from RVS as always
