Ruby Twist Pro housing assembly. You can easily switch this over with your Thermal Twist housing if desired. If you have a Ruby Twist already just grab the Conversion Kit to upgrade it you don't need the whole housing.
Included

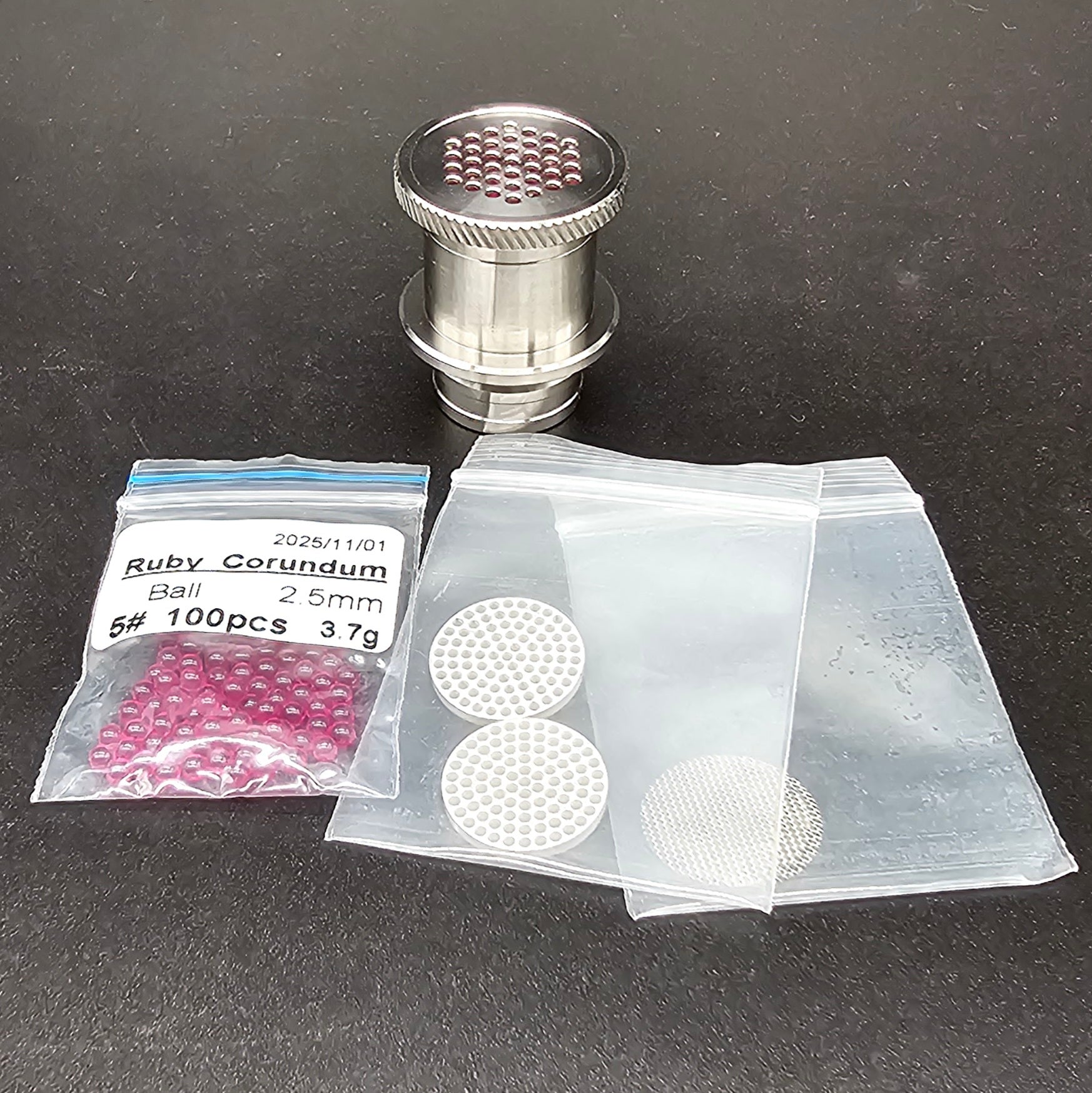

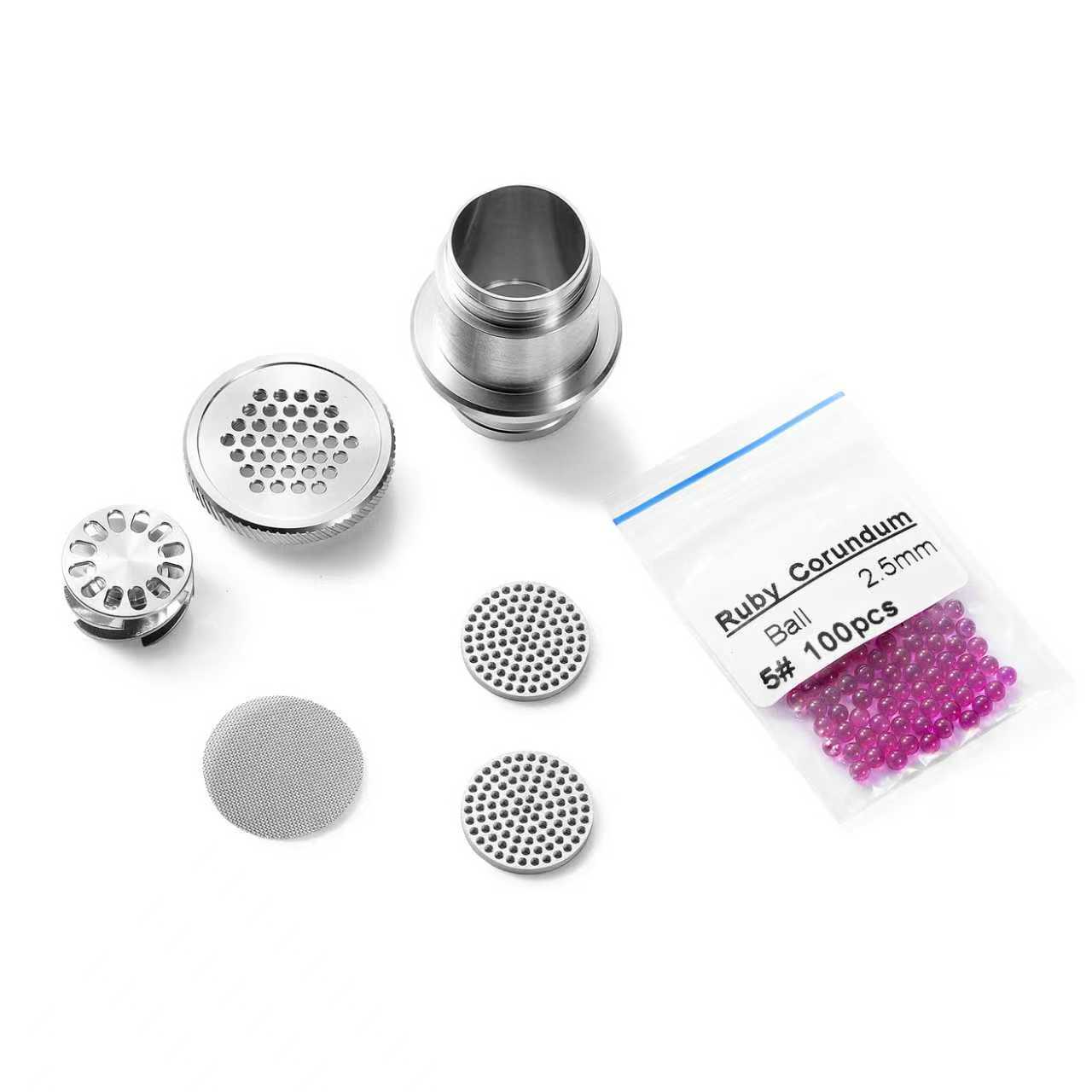

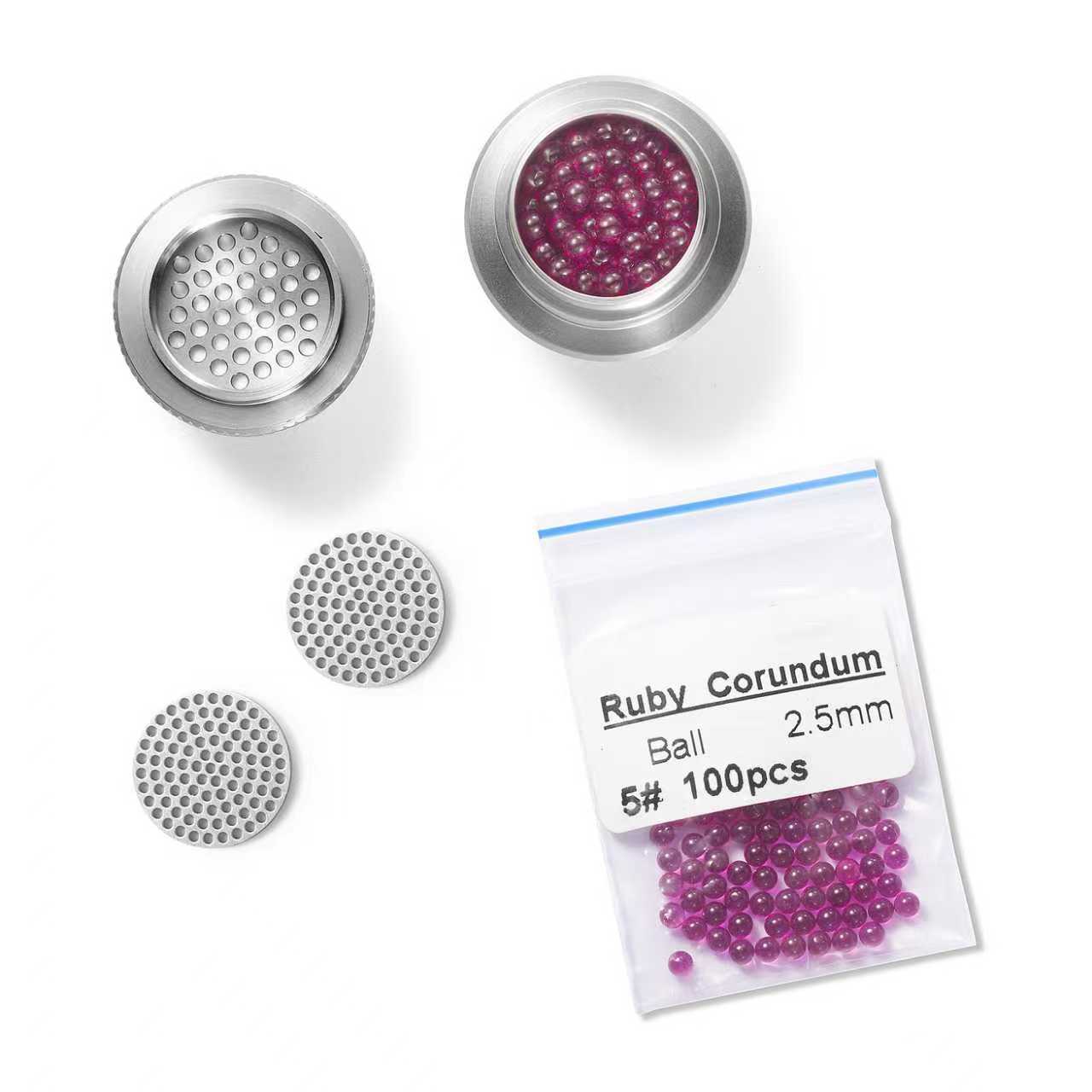

- 1 x Ruby Twist Pro Housing (balls and spinner widget installed)
- 100 x Additional 2.5mm Rubies
- 2 x CNC Screen (only one is needed, one is provided as a spare)
- 2 x Spare Mesh Screen (for putting on top of the spinner widget)
Housing Switch Instructions
1 - Unscrew the bolts on the heat guard using the allen key provided with the original kit, then remove it
2 - Hold the bottom of the Twist housing installed in the coil, unscrew the cap by hand to remove the cap and core together (Thermal Twist - Ruby Twist has no core, just rubies and a spinner widget underneath!)
3 - Holding it upright, unscrew the cap of the new housing and insert the main part into the coil, then screw the cap back on
4 - Replace the heat guard and tighten up the bolts!
If you're going to use it without the spinner widget, remove the cap, pour out the rubies then replace the spinner widget with the CNC screen included in this pack. You can add one of the mesh screens on top of the CNC screen for good measure, just to ensure the balls don't obstruct the holes in the CNC screen. Then pour the ruby balls into the housing before installing it into your heater coil and screwing the cap back on. Make sure to not overfill the housing, leave a tiny gap at the top, above the rubies, to account for thermal expansion.
